When using Docker on a single host, a local private network is created and allows your containers to reach each others. It’s easy to make your application chat with your database:

$ docker run -itd --name=database -e MYSQL_ROOT_PASSWORD=secret mysql
48b1c34cc7bb5f171a5d51275928944bbe5355858500fc5903b5ac25af0650e6
$ docker run -it --rm --link database:database mysql bash
# mysql -p -h database
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 3
Server version: 5.7.11 MySQL Community Server (GPL)

Copyright (c) 2000, 2016, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>

However, this relies on the fact that the two containers are running on the same host. Since Docker 1.9, it’s possible to have a similar feature out-of-the-box inside a multi-host Docker cluster, thanks to the new overlay network driver. Unlike bridge networks, overlay networks require a key-value store. We will use Consul. We demonstrate the setup using Docker Machine to deploy Docker hosts and Docker Swarm to manage them seamlessly.

Multi-host private network with Docker

The steps we will follow are:

  1. Configure Docker and Docker Machine.
  2. Spawn a new Docker VM with Docker Machine.
  3. Run Consul, a key-value store, on this new Docker VM.
  4. Create a 3-node Docker Swarm cluster.
  5. Create an overlay network.
  6. Spawn containers on the Docker Swarm cluster and check they can use the overlay network.

Requirements

You will need to install a recent version of Docker Engine and Docker Machine on your machine. You will also need an account on Exoscale.

Docker Machine is deprecated

Please consider using an alternative method to deploy a single container or a stack:

From your workstation, here is how to get started with Docker Engine and Docker Machine:

$ mkdir docker-tutorial
$ cd docker-tutorial
$ curl -sLo docker https://get.docker.com/builds/`uname -s`/`uname -m`/docker-1.10.2
$ curl -sLo docker-machine https://github.com/docker/machine/releases/download/v0.6.0/docker-machine-`uname -s`-`uname -m`
$ chmod +x docker*
$ export PATH=$PWD:$PATH
$ docker --version
Docker version 1.10.2, build c3959b1
$ docker-machine --version
docker-machine version 0.6.0, build e27fb87

Ensure you stay in the same shell for the remaining of this tutorial.

Then, grab your credentials from the Exoscale console and export your API key and secret key:

$ export EXOSCALE_API_KEY=xxxxxxxxxxxxxxxxx
$ export EXOSCALE_API_SECRET=xxxxxxxxxxxxxxxx
$ export EXOSCALE_AVAILABILITY_ZONE=ch-dk-2

Set up a key-value store

An overlay network requires a key-value store. The key-value store holds information about the network state which includes discovery, networks, endpoints, IP addresses, and more. We will use Consul for this purpose.

Currently, we don’t have any Docker instance to host our key-value store. Therefore, we will specifically, provision a new Docker VM called tuto-manager for this purpose.

$ docker-machine create -d exoscale tuto-manager

Your new VM with a running Docker daemon should be ready in less than 2 minutes. You can see it in the web console:

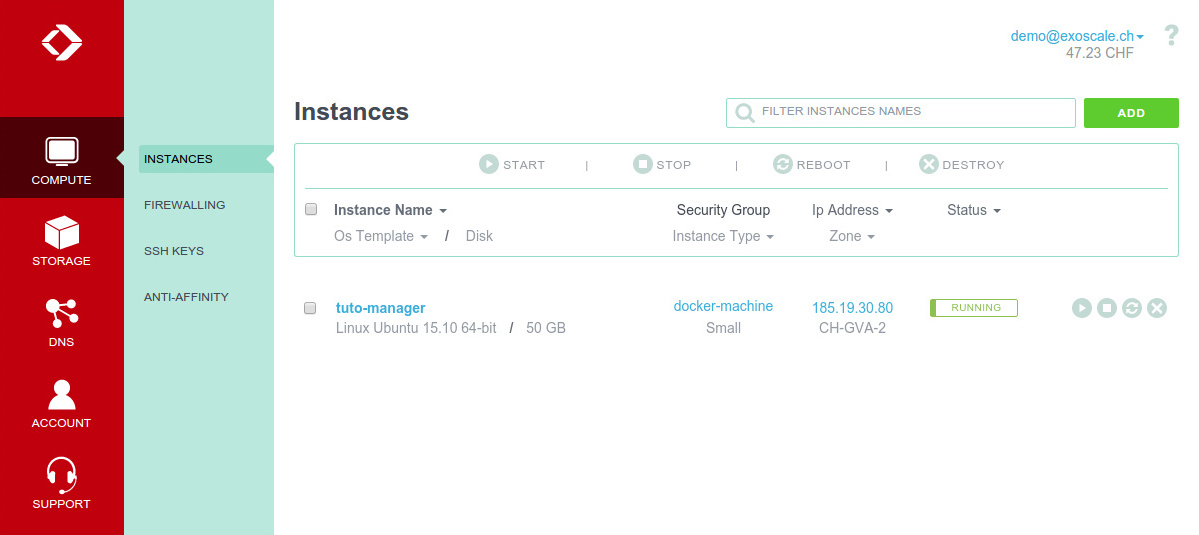

first VM in web console

You can also check its status from the command line:

$ docker-machine ls
NAME           ACTIVE   DRIVER     STATE     URL                       SWARM   DOCKER    ERRORS
tuto-manager   -        exoscale   Running   tcp://185.19.30.80:2376           v1.10.2

Then, tell the docker command to use this VM for the next commands and start a progrium/consul container:

$ eval $(docker-machine env tuto-manager)
$ docker run -d -p 8500:8500 -h consul progrium/consul -server -bootstrap

The remote Docker, running on tuto-manager VM, will fetch the progrium/consul image and start a new container. You can check it is running correctly with the docker ps command:

$ docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                                                                            NAMES
656fa10fb3d1        progrium/consul     "/bin/start -server -"   34 seconds ago      Up 34 seconds       53/tcp, 53/udp, 8300-8302/tcp, 8400/tcp, 8301-8302/udp, 0.0.0.0:8500->8500/tcp   distracted_shaw

Configure the security groups

While you now have a VM running Consul in a container, it is not quite functional. At Exoscale, we put the security first and by default, the VM has a restrictive firewall preventing any incoming connection. Docker Machine did create a special security group, docker-machine, authorizing the following incoming connections:

  • TCP port 22 for SSH from any IP
  • TCP port 2376 for Docker from any IP (secured by TLS)
  • TCP port 3376 for Docker Swarm from any IP (secured by TLS)
  • ICMP type 8, code 0 from any IP (ping)

We need additional rules to ensure our overlay network will work as expected. Notably, any host in the Docker cluster should be able to access the key-value store. Moreover, packets used by the overlay network also need to be authorized. Therefore, you need to modify the docker-machine security group with the following additional rules:

  • TCP port 8500 for Consul from docker-machine security group
  • TCP port 7946 for overlay network from docker-machine security group
  • UDP port 7946 for overlay network from docker-machine security group
  • TCP port 4789 for overlay network from docker-machine security group

We keep our setup secure by only authorizing access to the key-value store and to the overlay network by machines in the same security group. Here is what you should get when you are done:

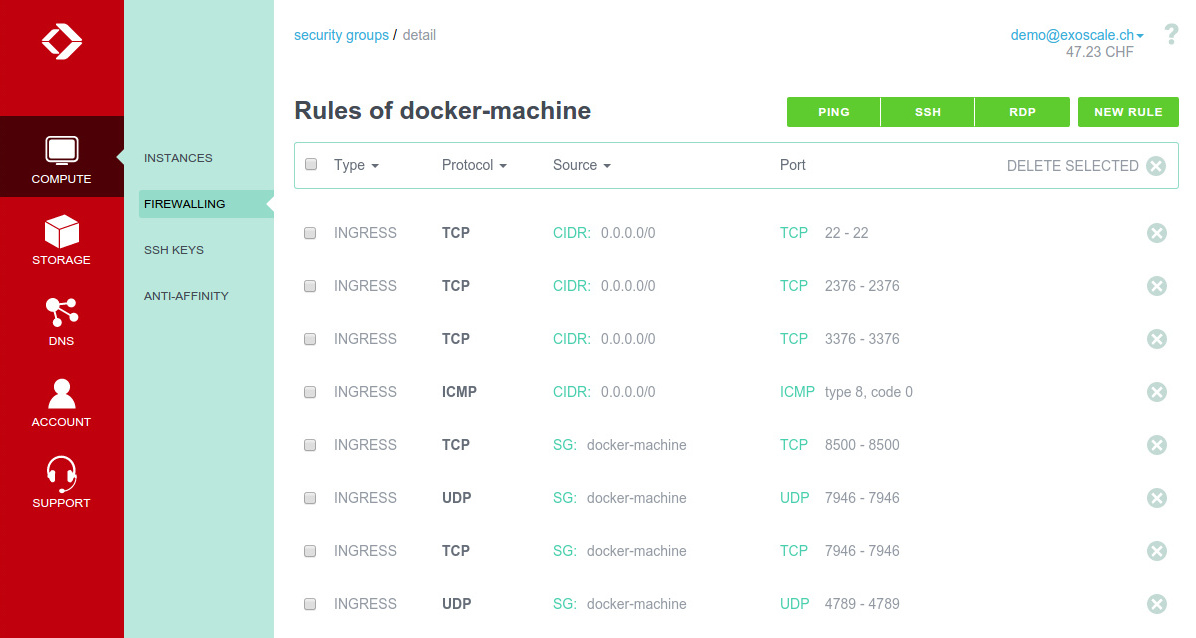

security group configuration in web console

Create a Swarm cluster

We can now use docker-machine to provision the hosts for your network. We will create 3 VM, each running a Docker Engine. They will have to know how to contact the key-value store. The first one will act as the Swarm master:

$ docker-machine create \
    -d exoscale \
    --swarm --swarm-master \
    --swarm-discovery="consul://$(docker-machine ip tuto-manager):8500" \
    --engine-opt="cluster-store=consul://$(docker-machine ip tuto-manager):8500" \
    --engine-opt="cluster-advertise=eth0:2376" \
    tuto-node1

At creation time, you supply the Docker Engine daemon with the --cluster-store option. This option tells the location of the key-value store for the overlay network. The shell expansion $(docker-machine ip tuto-manager) resolves to the IP address of the Consul server you created earlier.

Your new host should be available in less than two minutes. You can create two additional hosts and make them join the cluster:

$ docker-machine create \
    -d exoscale \
    --swarm \
    --swarm-discovery="consul://$(docker-machine ip tuto-manager):8500" \
    --engine-opt="cluster-store=consul://$(docker-machine ip tuto-manager):8500" \
    --engine-opt="cluster-advertise=eth0:2376" \
    tuto-node2
$ docker-machine create \
    -d exoscale \
    --swarm \
    --swarm-discovery="consul://$(docker-machine ip tuto-manager):8500" \
    --engine-opt="cluster-store=consul://$(docker-machine ip tuto-manager):8500" \
    --engine-opt="cluster-advertise=eth0:2376" \
    tuto-node3

You can check they are all up and running with docker-machine ls:

$ docker-machine ls
NAME           ACTIVE   DRIVER     STATE     URL                        SWARM                 DOCKER    ERRORS
tuto-manager   *        exoscale   Running   tcp://185.19.30.80:2376                          v1.10.2
tuto-node1     -        exoscale   Running   tcp://185.19.28.133:2376   tuto-node1 (master)   v1.10.2
tuto-node2     -        exoscale   Running   tcp://185.19.30.187:2376   tuto-node1            v1.10.2
tuto-node3     -        exoscale   Running   tcp://185.19.30.9:2376     tuto-node1            v1.10.2

Each node is also available in the web console:

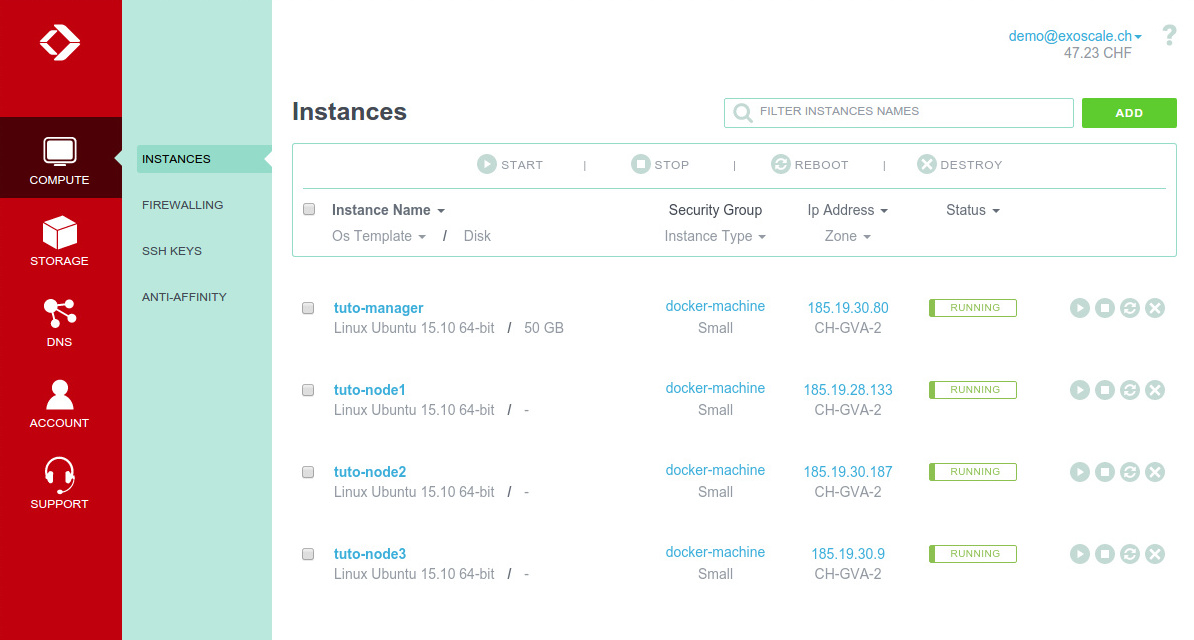

3-node cluster in the console

Let’s tell Docker to use our Swarm cluster from now on:

$ eval $(docker-machine env --swarm tuto-node1)
$ docker info
Containers: 4
 Running: 4
 Paused: 0
 Stopped: 0
Images: 3
Server Version: swarm/1.1.2
Role: primary
Strategy: spread
Filters: health, port, dependency, affinity, constraint
Nodes: 3
 tuto-node1: 185.19.28.133:2376
  └ Status: Healthy
  └ Containers: 2
  └ Reserved CPUs: 0 / 2
  └ Reserved Memory: 0 B / 2.051 GiB
  └ Labels: executiondriver=native-0.2, kernelversion=4.2.0-30-generic, operatingsystem=Ubuntu 15.10, provider=exoscale, storagedriver=aufs
  └ Error: (none)
  └ UpdatedAt: 2016-02-29T11:05:47Z
 tuto-node2: 185.19.30.187:2376
  └ Status: Healthy
  └ Containers: 1
  └ Reserved CPUs: 0 / 2
  └ Reserved Memory: 0 B / 2.051 GiB
  └ Labels: executiondriver=native-0.2, kernelversion=4.2.0-30-generic, operatingsystem=Ubuntu 15.10, provider=exoscale, storagedriver=aufs
  └ Error: (none)
  └ UpdatedAt: 2016-02-29T11:06:11Z
 tuto-node3: 185.19.30.9:2376
  └ Status: Healthy
  └ Containers: 1
  └ Reserved CPUs: 0 / 2
  └ Reserved Memory: 0 B / 2.051 GiB
  └ Labels: executiondriver=native-0.2, kernelversion=4.2.0-30-generic, operatingsystem=Ubuntu 15.10, provider=exoscale, storagedriver=aufs
  └ Error: (none)
  └ UpdatedAt: 2016-02-29T11:05:28Z
Plugins:
 Volume:
 Network:
Kernel Version: 4.2.0-30-generic
Operating System: linux
Architecture: amd64
CPUs: 6
Total Memory: 6.154 GiB
Name: tuto-node1

Create the overlay network

Creating the overlay network is now quite simple:

$ docker network create --driver overlay --subnet=10.0.9.0/24 private-net
eb694ff309017e904a8d53accc55da6d199adf53f10903e4d1224a02a1446c83
$ docker network ls | grep overlay
eb694ff30901        private-net         overlay

The overlay network is now available for all members of the Swarm cluster.

Run an application

We are now ready to start a container using the newly created network. To demonstrate that the network work as expected, we will ensure we put each container on different Docker VM. Let’s start a MySQL container on the first node:

$ docker run -itd --name=database --net=private-net \
             -e MYSQL_ROOT_PASSWORD=secret \
             -e constraint:node==tuto-node1 mysql

The Docker Engine running on tuto-node1 will fetch the mysql image and run it in a container attached to the private-net network. Let’s also start a container with Nginx on the second node:

$ docker run -itd --name=web --net=private-net \
             -e constraint:node==tuto-node2 nginx

Check that both containers are running:

$ CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
3425d27e2336        nginx               "nginx -g 'daemon off"   2 seconds ago       Up 1 seconds        80/tcp, 443/tcp     tuto-node2/web
e412e4cf23e8        mysql               "/entrypoint.sh mysql"   14 seconds ago      Up 13 seconds       3306/tcp            tuto-node1/database

We can spawn a shell in a third container to check everything works as expected. Let’s check we can connect to the MySQL database:

$ docker run -it --rm --net=private-net \
             -e constraint:node==tuto-node3 mysql bash
root@b8b2496bb380:/# mysql -p -h database
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 2
Server version: 5.7.11 MySQL Community Server (GPL)

Copyright (c) 2000, 2016, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> ^DBye

And we can also connect to the Nginx web server:

$ docker run -it --rm --net=private-net \
             -e constraint:node==tuto-node3 busybox wget -O- http://web
Connecting to web (10.0.9.3:80)
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

Note that we didn’t expose any ports. Therefore, the Nginx daemon and the MySQL database are not accessible from the outside. They can only be accessed from the overlay network. However, we can also expose ports. Let’s destroy the web container a recreate a new one that would also be accessible from outside:

$ docker kill web
$ docker rm web
$ docker run -itd --name=web --net=private-net \
             -p 80:80 \
             -e constraint:node==tuto-node2 nginx

Hold on! You also need to open the port 80 in the docker-machine security group. Add the following rule:

  • TCP port 80 for HTTP from any IP

You can now check that it works as expected:

$ curl -s http://$(docker inspect \
       --format '{{ (index (index .NetworkSettings.Ports "80/tcp") 0).HostIp }}' \
       web)
[...]

Conclusion

Thanks to the new network overlay feature, it is now quite easy to spread containers across a Docker Swarm cluster without worrying about discovery (names are automatically exported through DNS in each container) and network reachability.
